Double Skin Air Handling Unit

Double Skin Air Handling Unit
Double Skin Air Handling Unit
Product Code : 18
Product Description

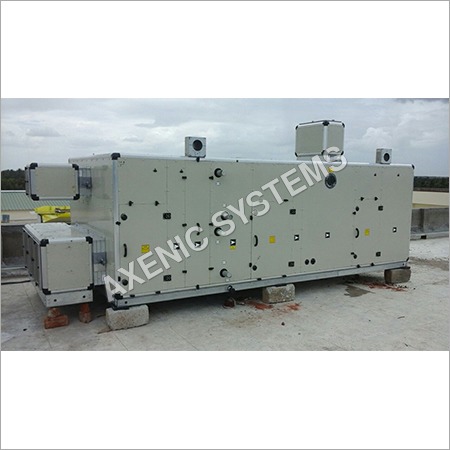

Double Skin Air Handling Unit

The Double Skin type Air Handling Unit consists of blower section with KRUGER / NICOTRA or any other equivalent make forward curve DIDW centrifugal high static blowers, SIEMENS / CROMPTON / BHARAT BIJLEE make or any other equivalent make three phase induction motors, driving accessories, coil section with direct expansion type cooling coil; insulated condensate drain tray, filter section with 20 micron and prefilter mounting frame, mixing box section, return air 90% & 10% F.A. cut outs. The fan assembly mounted on common base with vibration isolator, flexible canvass connection. The AHU frame should be aluminium hollow section with 25mm thick PUF insulation (outer skin CRCA & inner skin G.I.) with enamel finish. Provision of service doors in blower and mixing box section wherever required and the doors and panels will be sealed with food grade rubber gasket in order to avoid air leakage.
